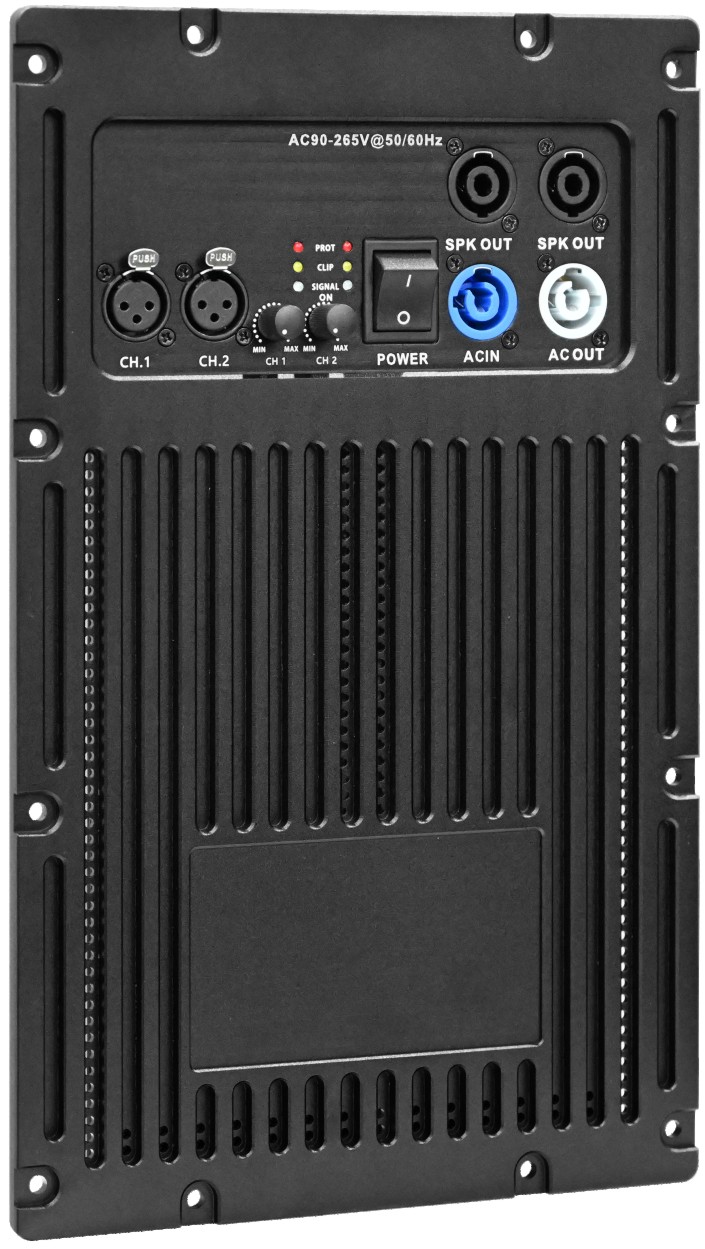

Модуль активного динамика высокого класса
$100-350 /Set/Sets
Вид оплаты: | T/T,Paypal |
Инкотермс: | FOB,CIF,EXW,Express Delivery |
Количество минимального заказа: | 100 Set/Sets |
транспорт: | Ocean,Air,Express |
Порт: | Foshan,Guangzhou,Honkong |
Модель: PF-3200D
марка: Aiwo Audio
Сертификация: ce, RoHS
Виды: Профессиональный усилитель
проход: 4
место происхождения: Китай
Применение: Hi-Fi, AV, KTV System
Tube Type: Transistor Amplifier
Channels: 4
Amplifier Classes: Class D
Cooling Mode: air cooling,electrodeless electronic fanautomatic speed regulation with temperature
Working Voltage: 85-265Vac
Power: 3200W
Frequency Range: 50-60Hz
Panel Color: Iron Black
Weight: 3.9kgs
Продажа единиц жилья | : | Set/Sets |
Тип упаковки | : | Двойная картонная упаковка |
The file is encrypted. Please fill in the following information to continue accessing it
Класс-D Профессиональные модули усилителя 3 Ввод 3 Вывод цифровой модуль усилителя с усилителем управления DSP 2 * 3000W Subwoofer Poard
Профессиональный модуль усилителя использует высокоэффективную схему усилителя класса D с одноканальной мощностью до 600 Вт и поддерживает стабильное вождение полночастотных, кроссоверных динамиков и сабвуферов. На сайте музыкального фестиваля модуль усилителя DSP может обеспечить непрерывную и энергичную энергию для динамиков массива линий, обеспечивая мощные низкие частоты и четкие высокие частоты. В системе конференции стабильная выходная мощность в сочетании с интеллектуальной ограничивающей защитой устраняет искажения и воть, модуль усилителя обеспечивает четкую передачу каждой речи.
Rated Power | PF-3200 |
1 kHz with1% THD | PF-3200D (DSP) |
at 8 ohms stereo: | 4x800 W |
at 4 ohms stereo: | 4x1200 W |
at 2.7 ohms stereo: | ----- |
bridged at 8 ohms mono: | 2x1500 W |
bridged at 4 ohms mono | ----- |
Frequency Response: | 20Hz-20KHz(±3dB) |
Input Sensitivity: | 0.775V |
Input Impedance: | 20KΩ/10KΩ |
Damping Factor: | >1000(8Ω load 1KHZ and below) |
S/N Ratio: | >115dB |
Protection Circuits: | Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection |
Working voltage: | 90-265Vac,50/60Hz |
InputConnector: | 1xXLRfemale,1xXLRmale,1xVolume,1x HPF,Preset switch |
OutputConnector: | 1xNL4 SPEAKON |
Dimensions(WxDxH): | 390x128x100mm |
Weight (net): | 3.9kg |
