модуль усилителя для активного динамика
$100-350 /Set/Sets
Вид оплаты: | T/T |
Инкотермс: | FOB |
Количество минимального заказа: | 100 Set/Sets |
транспорт: | Ocean |
Порт: | Foshan,Guangzhou,Honkong |
Модель: PT-1900D
марка: Aiwo Audio
Виды: Профессиональный усилитель
место происхождения: Китай
Применение: Hi-Fi, AV, KTV System
Tube Type: Transistor Amplifier
Channels: 2
Amplifier Classes: Class D
Cooling Mode: air cooling,electrodeless electronic fanautomatic speed regulation with temperature
Working Voltage: 85-265Vac
Power: 800W
Frequency Range: 50-60Hz
Panel Color: Iron Black
Weight: 2.1kgs
Продажа единиц жилья | : | Set/Sets |
Тип упаковки | : | Двойная картонная упаковка |
The file is encrypted. Please fill in the following information to continue accessing it

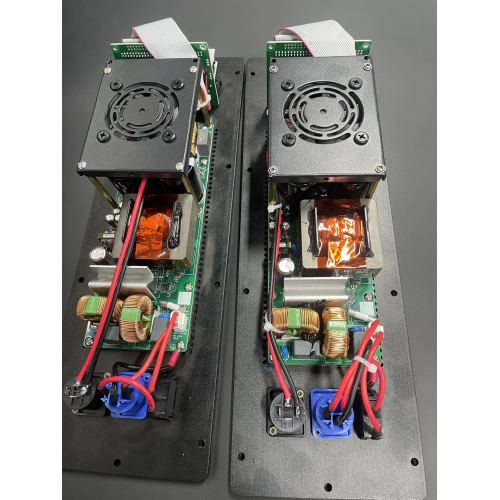

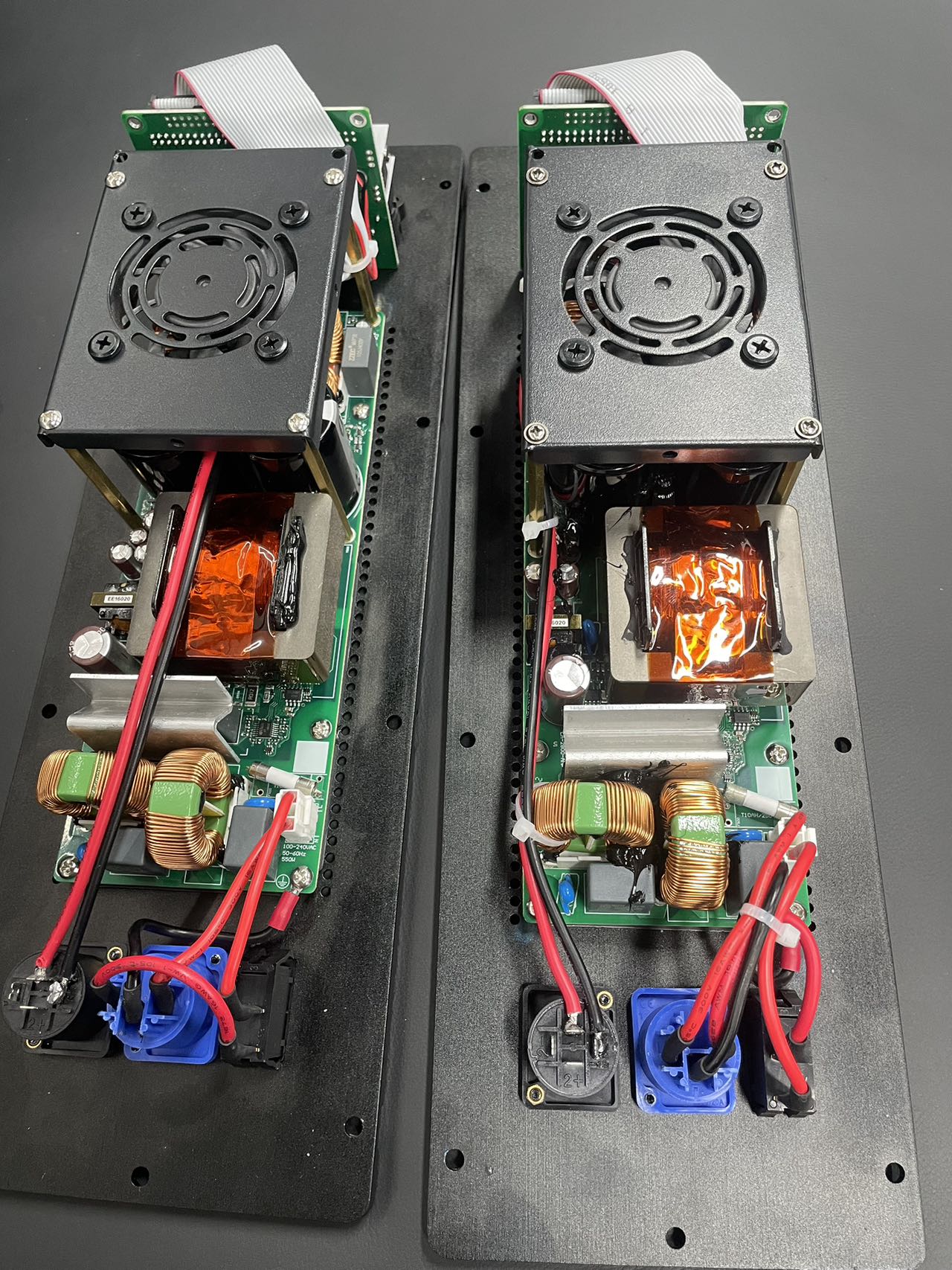

1900 Вт+1900 Вт 4 Ом 525 Цифровой модуль усилителя мощности Новая плата Power Amp для суббофа
Модуль усилителя DSP полностью управляется цифровым управлением DSP и точно привязывает звуковые волны. Он оснащен 32-разрядным чипом DSP с плавающей точкой. Плата усилителя сабвуфера поддерживает более 30 профессиональных функций обработки, таких как параметрическое выравнивание 24 сегмента, коррекция фазы, динамическое ограничение и калибровка задержки. Плата усилителя может быть визуально настроена в режиме реального времени через программное обеспечение для ПК/мобильного телефона и устранить дефекты звукового поля, такие как стоящие волны и резонанс с одним щелчком. Пусть мощный бас будет как бурным, так и чистым, восстанавливая оригинальное намерение музыкального продюсера.
Rated Power | PT-1900 |
1 kHz with1% THD | PT-1900D (DSP) |
at 8 ohms stereo: | 1500+400 W |
at 4 ohms stereo: | 2000+800 W |
at 2.7 ohms stereo: | ----- |
bridged at 8 ohms mono: | ----- |
bridged at 4 ohms mono | ----- |
Frequency Response: | 20Hz-20KHz(±3dB) |
Input Sensitivity: | 0.775V |
Input Impedance: | 20KΩ/10KΩ |
Damping Factor: | >1000 (8Ω load 1KHZ and below) |
S/N Ratio: | >115dB |
Protection Circuits: | Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection |
Working voltage: | 90-265Vac,50/60Hz |
InputConnector: | 2xXLRfemale,2xVolume,Preset switch |
OutputConnector: | 1xNL4 SPEAKON |
Dimensions(WxDxH): | 390x128x100mm |
Weight (net): | 2.1kg |
